Automatic Hot Melt Adhesive Coating Machine

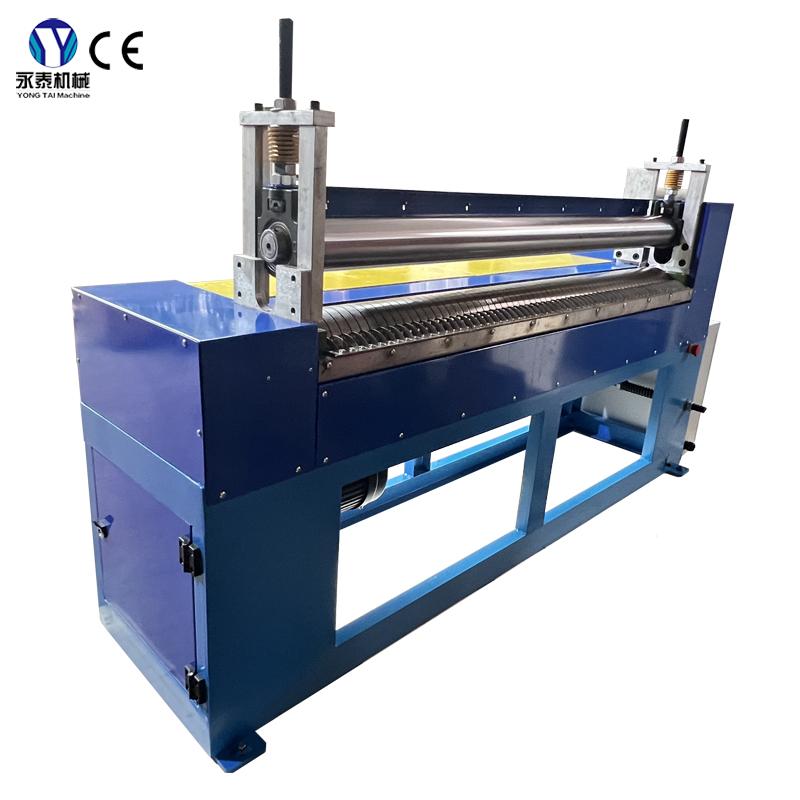

YT-GL1400 1.4m Automatic Hot Melt Adhesive Coating Machine

The roller gluing machine is specially designed for gluing large-area flat materials. According to the needs of the product and different materials, the gluing amount can be adjusted. The environmentally friendly hot-melt glue machine is used instead of self-adhesive glue, water-based glue, etc.

Brand:
Yongtai machine
Item NO.:
YT-GL1400
Order(MOQ):
1
Product Origin:
Fujian,China
Color:
Blue and white
Shipping Port:
XIAMEN PORT
Lead Time：
30

Inquire now

Categories

New Products

Product Detail

Hot melt glue machine is mainly used in: packaging industry, carpet lamination, wet wipe cover, paper products, EVA sheet, mask aluminum strip, clothing dressing, EPE pearl cotton packaging material, non-woven lamination and other industries.

ITEM	UNIT	GL1200	GL1400	GL1600
Tank Capacity	KG	20	22	24
Max.malting rate	KG/HOUR	60	65	80
Max.Operation temp.	°C	220	22o	220
Melt Power	Watt	890o	1000o	10400
Motor power	Watt	400	400	40o
Coating width	MM	1200	1400	1600
Max.Viscosity	Cps	100,000	100,000	100,000
Power Requirement	Three phase electric-380v
Speed type		variable frequency	variable frequency	variable frequency

The feature:

1. It has a safety design to prevent the hand from being involved in the roller, and the anti-involvement device prevents the work object from being involved in the glue storage tank.

2. The main rotation system adopts stepless speed regulation, independent temperature control of rollers and glue tank, and double temperature protection. The glue barrel adopts Teflon coating, which greatly reduces the oxidation of glue and has a reliable guarantee for product quality.

3. The coating width can be designed from 300-2000MM according to different requirements of customers.

4. Brand motors and frequency converters are used, and all precision components are manufactured by imported CNC machining centers.
